Flange Gearbox – Planetary Gearbox with Output Flange PFHE

The planetary gearbox with flange output shaft for high-load applications

The PFHE represents an economically attractive alternative for high-load applications in which high radial loads occur. The combination of special pre-stressed inclined roller bearings and a flanged output shaft in accordance with EN ISO 9409-1 gives the PFHE a very high load capacity. Thanks to the radial shaft seal that is used, this gearbox achieves protection class IP65 at the output side and can therefore also withstand adverse usage conditions.

DetailsParameter

PFHE planetary gearheads are an attractive product for high radial load applications. This special, pre-tensioned angular contact roller bearing, combined with a flanged output shaft according to EN ISO 9409-1, enables the PFHE to have a high load carrying capacity. Thanks to the radial shaft seal, the output end of this gear unit is IP65 protected, making it suitable for harsh environments.


Product description


The PFHE features a round oversized output flange, radial shaft seal, and easy installation. The planetary carrier adopts spur gears with preloaded angular contact roller bearings, the flanged output shaft is ISO 9409 standard, and can be customized with pinion gearbox as an option. This gearbox is a model that has been further optimized and produced on the basis of other economical gearboxs. It is suitable for flange gearboxs with high radial load. With angular contact roller bearings and high protection level, it can be used in harsh environments. working environment.


The conventional service life of the PFHE planetary gearbox is 30,000 hours, and the working temperature is between -25-90 °C; there are three lubrication methods: standard, food-grade, and low temperature; the torsional stiffness of the gearbox is in the range of 5.4-95Nm; the weight is 1.1-7.9kg ; The maximum radial force is 5150N, and the maximum axial force is 6450N. This gearbox can still operate safely and stably under high load conditions, and is suitable for applications in automation, printing, wood processing and other industries, and its compact structure can be installed in a narrow environment, saving space.


Product advantages


Angular Contact Roller Bearings


High load


radial shaft seal


optional


lubricating


Nationalized inflation system


Various types of drive flanges


Flexible connection of motors


installed pinion






Use


Packaging, machine tools, agricultural products industry


Features


High radial loads due to innovative bearing design


Protection class IP65


Fast and safe installation


Can be installed anywhere


Lifetime lubrication maintenance free

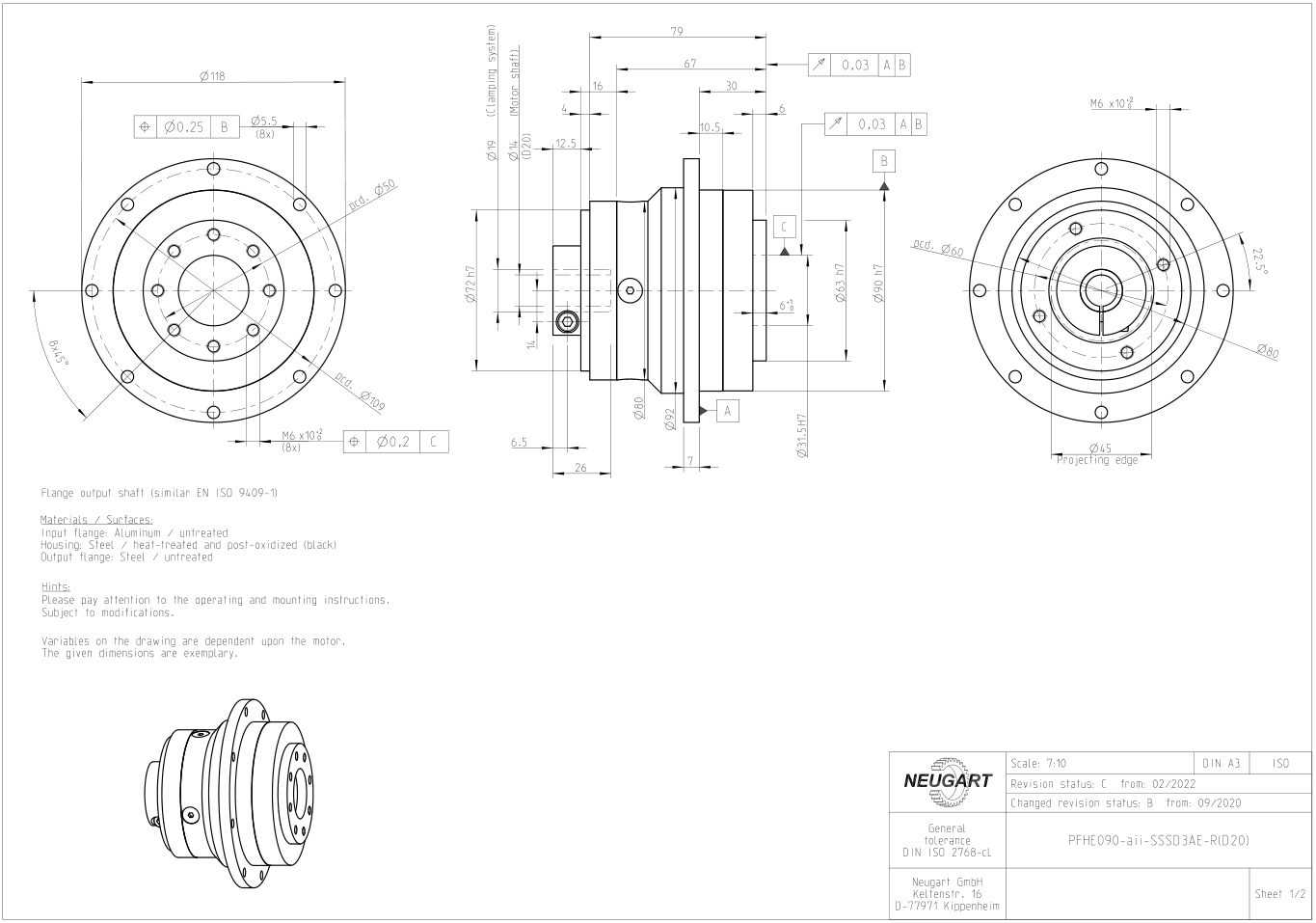

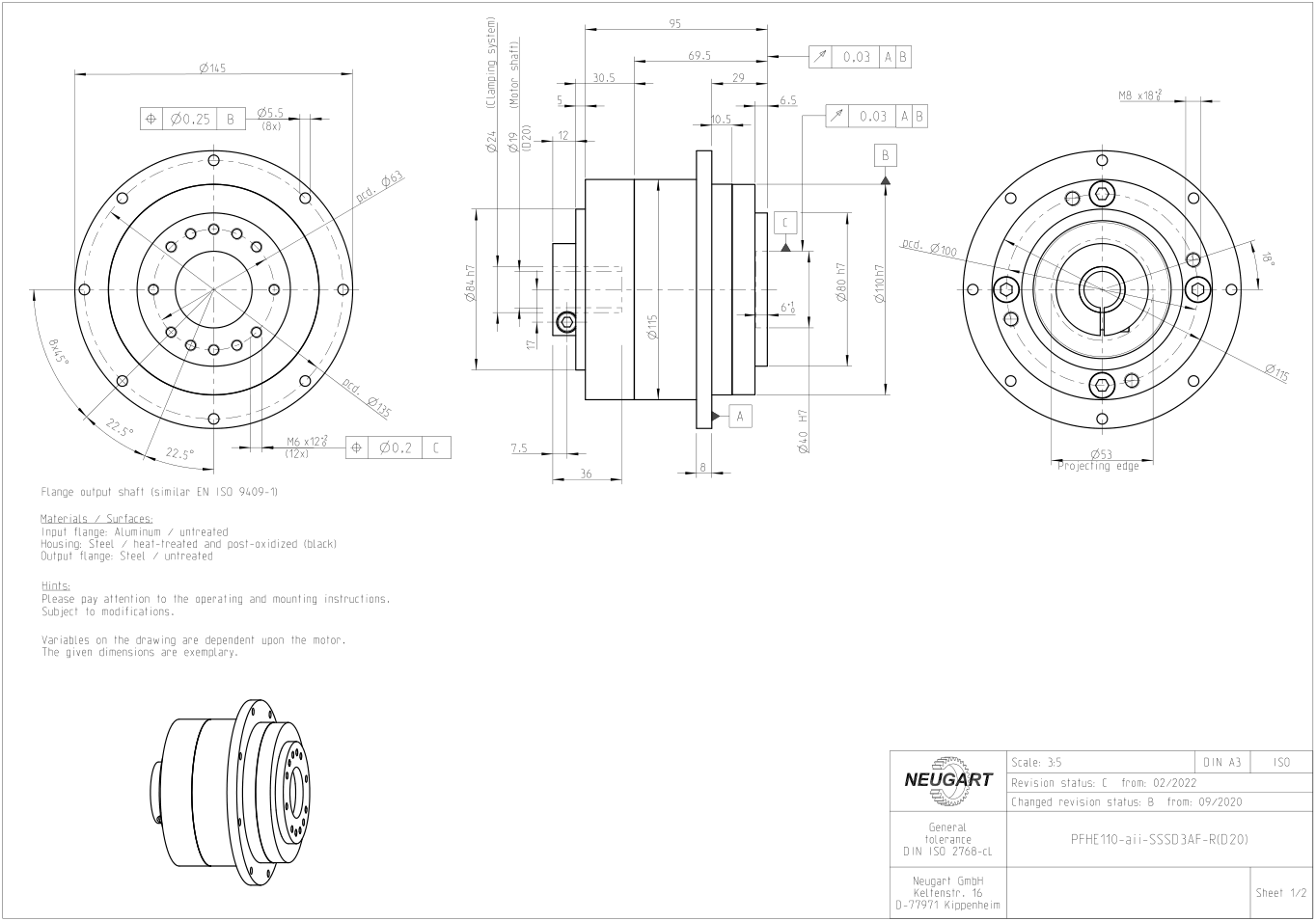

PFHE planetary gearbox structure size drawingPFHE減速機(jī)圖紙.pngPFHE064 planetary gearbox structure size drawingPFHE090 planetary gearbox structure size drawingPFHE110 planetary gearbox structure size drawing


Gearbox characteristics PFHE064 PFHE090 PFHE110 P
Reduer 3, 4, 5, 7, 8, 10 1
Reduer 9, 12, 15, 16, 20, 25, 32, 40,64,100 2
Service life h 30.000
Efficiency at full load % 97
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication Grease (lifetime lubrication)
 Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
 Installation position Any
Standard backlash arcmin <10-<12 <7-<9 <7-<9
Torsional stiffness Nm/arcmin 5.0-11.5 15.7-38.5 30.0-95.0
 Gearbox weight kg 1.1-1.4 3.1-3.8 5.9-7.9
 Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 60 62 65
 Max bending moment based on the gearbox input flange Nm 8 16 40

Nominal Output torque

PFHE064 PFHE090 PFHE110 I P
28 85 115 3 1
38 115 155 4
40 110 195 5
25 65 135 7
18 50 120 8
15 38 95 10
44 130 210 9 2
44 120 260 12
44
110 230 15
44 120 260 16
44 120 260 20
40 110 230 25
44 120 260 32
40 110 230 40
18 50 120 64
15 38 95 100



Output shaft loads

 PFHE064  PFHE090 PFHE110
Radial force for 20000 h N  2300    4100 5150
Axial force for 20000 h N 2850 5450 6450
Radial force for 30000 h N 2000
3650 4550
Axial force for 30000 h  N 2500 4800 5600
Tilting moment for 20000 h Nm 110 278 407
Tilting moment for 30000 h Nm 96 248 360


Geometry

PLHE060 PLHE080 PLHE120     P
Pitch circle diameter output shaft mm 31.5  50 63
Centering diameter output flange mm 64 90 110
Flange diameter output mm 86 118 145
Min. total lenght mm 72 100.5 117 1
mm 84.5 118 144 2
Output  flange length mm 19.5 30 29
